Lawson form is not sized right in Portal

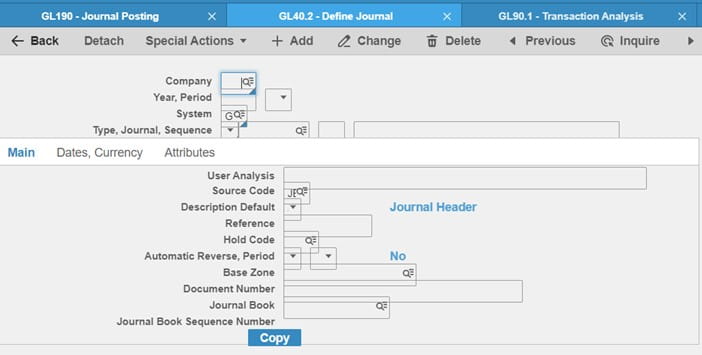

Problem: The GL40.2 form is not sized right.

Can you please open again program in Lawson Portal and once you open it, please do “CTRL+ALT+A” from your keyboard and send me the result it will show the XML file.

<?xml version=”1.0″ encoding=”ISO-8859-1″?><form FORMTYPE=”window” NOTKNXFER=”1″ RUNTYPE=”lapm” SYSTEM=”GL” TITLE=”Define Journal” TOKEN=”GL40.2″ TYPE=”ONLINE” XMLGenBy=”xscrgen 9.0.1.8.221 2011-01-28 04:00:00 (201105)” XMLGenDT=”20120205 2237″ add=”A” chg=”C” custom=”1″ datareq=”ACR” dateupgrade=”1445006844693″ dblXmit=”D” defaultFC=”” defaultui=”false” del=”D” evttype=”” formid=”GL40.2_CUSTOM” gHeight=”24″ gWidth=”13″ height=”24″ hiddenFC=”0″ id=”form1″ inq=”I” keycheck=”CDRB” lineDupAllow=”0″ nbr=”form1″ next=”NP” objmode=”0″ pdl=”DEVRY” prefc=”” rtntype=”ALL” scr=”GI” staticsize=”1″ targetid=”junk” typ=”o” width=”80″ workflow=”0″ rootdir=”/lawson/portal” mode=”modal” hkey=”” host=”portal” allowListMode=”1″ iosVersion=”10.0.” allowTransfer=”0″ allowManualCF=”0″>
<transfers id=”transfers1″ nbr=”_l1″/>
<fld al=”right” col=”17″ id=”label1″ nbr=”_l2″ nm=”Company:” row=”2″ sz=”8″ tp=”label”/>
<fld al=”right” col=”12″ id=”label2″ nbr=”_l3″ nm=”Year, Period:” row=”3″ sz=”13″ tp=”label”/>
<fld al=”right” col=”18″ id=”label3″ nbr=”_l4″ nm=”System:” row=”4″ sz=”7″ tp=”label”/>
<fld al=”right” col=”1″ id=”label4″ nbr=”_l5″ nm=”Type, Journal, Sequence:” row=”5″ sz=”24″ tp=”label”/>
<fld al=”left” blankzero=”0″ drlnokeys=”0″ ed=”upper” hdet=”1″ hsel=”1″ id=”hidden1″ nbr=”_f0″ nm=”TC” req=”1″ sz=”6″ tp=”Hidden”/>
<toolbar al=”left” blankzero=”1″ col=”1″ drlnokeys=”0″ ed=”upper” hdet=”1″ hsel=”1″ id=”toolbar1″ nbr=”_f1″ nm=”FC” req=”1″ row=”0″ sz=”1″>
<button Disp=”A” id=”button1″ nbr=”_l6″ nm=”Add” value=”A” visible=”1″/>
<button Disp=”C” id=”button2″ nbr=”_l7″ nm=”Change” value=”C” visible=”1″/>
<button Disp=”D” id=”button3″ nbr=”_l8″ nm=”Delete” value=”D” visible=”1″/>
<button Disp=”I” id=”button4″ nbr=”_l9″ nm=”Inquire” value=”I” visible=”1″/>
<button Disp=”N” id=”button5″ nbr=”_l10″ nm=”Next” value=”N” visible=”1″/>
<button Disp=”P” id=”button6″ nbr=”_l11″ nm=”Previous” value=”P” visible=”1″/>
<button Disp=”R” id=”button7″ nbr=”_l12″ nm=”Release” value=”R” visible=”0″/>
<button Disp=”B” id=”button8″ nbr=”_l13″ nm=”BaseZoneChange” value=”B” visible=”0″/>
</toolbar>
<fld al=”left” blankzero=”0″ drlnokeys=”0″ ed=”numeric” hdet=”1″ id=”hidden2″ nbr=”_f2″ nm=”PT-XMIT-NBR” sz=”1″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”hidden3″ keynbr=”GFI” nbr=”_f3″ nm=”PT-MIMIC-ENTRY” sz=”1″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden4″ keynbr=”GkI” mxsz=”20″ nbr=”_f4″ nknimp=”1″ nm=”GLC-ENTRY-DB” sz=”17″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden5″ keynbr=”GkH” mxsz=”20″ nbr=”_f5″ nknimp=”1″ nm=”GLC-ENTRY-CR” sz=”17″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden6″ keynbr=”GkC” mxsz=”20″ nbr=”_f6″ nknimp=”1″ nm=”ENTRY-DIFF” sz=”17″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden7″ keynbr=”GkK” mxsz=”17″ nbr=”_f7″ nknimp=”1″ nm=”GLC-UNIT-ENTRY-DB” sz=”14″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden8″ keynbr=”GkJ” mxsz=”17″ nbr=”_f8″ nknimp=”1″ nm=”GLC-UNIT-ENTRY-CR” sz=”14″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden9″ keynbr=”GkL” mxsz=”17″ nbr=”_f9″ nknimp=”1″ nm=”UNIT-ENTRY-DIFF” sz=”14″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden10″ keynbr=”GkE” mxsz=”20″ nbr=”_f10″ nknimp=”1″ nm=”GLC-BASE-AUTO-DB” sz=”17″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden11″ keynbr=”GkD” mxsz=”20″ nbr=”_f11″ nknimp=”1″ nm=”GLC-BASE-AUTO-CR” sz=”17″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden12″ keynbr=”GkA” mxsz=”20″ nbr=”_f12″ nknimp=”1″ nm=”BASE-AUTO-DIFF” sz=”17″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden13″ keynbr=”GkG” mxsz=”20″ nbr=”_f13″ nknimp=”1″ nm=”GLC-BASE-DEBITS” sz=”17″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden14″ keynbr=”GkF” mxsz=”20″ nbr=”_f14″ nknimp=”1″ nm=”GLC-BASE-CREDITS” sz=”17″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ decsz=”2″ drlnokeys=”0″ ed=”signed” hdet=”1″ id=”hidden15″ keynbr=”GkB” mxsz=”20″ nbr=”_f15″ nknimp=”1″ nm=”BASE-DIFF” sz=”17″ tp=”Hidden”/>
<fld al=”left” blankzero=”0″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”hidden16″ keynbr=”26″ nbr=”_f16″ nm=”CALLED-PROGRAM” sz=”5″ tp=”Hidden”/>
<fld al=”right” blankzero=”1″ col=”26″ deftkn=”GL10.1″ drlnokeys=”1″ ed=”numeric” hdef=”1″ hdet=”1″ hrul=”1″ hsel=”1″ hselrul=”1″ id=”text1″ key=”1″ keynbr=”01″ label=”Company:” nbr=”_f17″ nextreq=”1″ nm=”GLC-COMPANY” req=”1″ row=”2″ sz=”4″ tp=”Text”/>
<fld al=”left” blankzero=”0″ deftkn=”CU01.1″ drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hrul=”1″ hsel=”1″ hselrul=”1″ id=”hidden17″ keynbr=”GC” nbr=”_f18″ nm=”GLS-CURRENCY-CODE” sz=”5″ tp=”Hidden”/>
<fld al=”left” blankzero=”1″ col=”41″ drlnokeys=”0″ hdet=”1″ id=”out1″ keynbr=”01D” nbr=”_f19″ nm=”GLS-NAME” row=”2″ sz=”30″ tp=”Out”/>
<fld al=”right” blankzero=”1″ col=”26″ drlnokeys=”0″ ed=”numeric” hdet=”1″ id=”text2″ key=”1″ keynbr=”06″ label=”Year, Period:” nbr=”_f20″ nm=”GLC-FISCAL-YEAR” row=”3″ sz=”4″ tp=”Text”/>
<fld al=”right” blankzero=”1″ col=”31″ drlnokeys=”0″ ed=”numeric” hdet=”1″ hsel=”1″ id=”select1″ key=”1″ keynbr=”GP” nbr=”_f21″ nm=”GLC-ACCT-PERIOD” row=”3″ seltype=”” sz=”2″ tp=”Select”>
<vals Disp=”01:13″ Tran=”01:13″ id=”vals1″ nbr=”_l14″>01:13</vals>
</fld>
<fld al=”left” blankzero=”1″ col=”26″ deftkn=”GL01.1″ defval=”GL” drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hrul=”1″ hsel=”1″ hselrul=”1″ id=”text3″ key=”1″ keynbr=”GS” label=”System:” nbr=”_f22″ nm=”GLC-SYSTEM” req=”1″ row=”4″ sz=”2″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”41″ drlnokeys=”0″ hdet=”1″ id=”out2″ keynbr=”G6Y” nbr=”_f23″ nm=”GCD-DESCRIPTION” row=”4″ sz=”30″ tp=”Out”/>
<fld al=”left” blankzero=”1″ col=”26″ defval=”N” drlnokeys=”0″ ed=”upper” hdet=”1″ hsel=”1″ id=”select2″ key=”1″ keynbr=”GK” label=”Type, Journal, Sequence:” nbr=”_f24″ nm=”GLC-JE-TYPE” req=”1″ row=”5″ seltype=”” sz=”1″ tp=”Select”>
<vals Disp=”N” Tran=”N” id=”vals2″ nbr=”_l15″>Normal</vals>
<vals Disp=”I” Tran=”I” id=”vals3″ nbr=”_l16″>Intercompany</vals>
</fld>
<fld al=”right” att_comment=”1″ att_url=”1″ blankzero=”1″ col=”28″ deftkn=”GL40.1″ drlnokeys=”0″ ed=”numeric” hdef=”1″ hdet=”1″ hrul=”1″ hsel=”1″ hselrul=”1″ id=”text4″ key=”1″ keynbr=”GI” nbr=”_f25″ nm=”GLC-CONTROL-GROUP” row=”5″ sz=”8″ tp=”Text”/>
<fld al=”right” blankzero=”1″ col=”37″ drlnokeys=”0″ ed=”numeric” hdet=”1″ id=”text5″ key=”1″ keynbr=”GIS” nbr=”_f26″ nm=”GLC-JE-SEQUENCE” row=”5″ sz=”2″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”41″ drlnokeys=”0″ hdet=”1″ id=”text6″ keynbr=”GID” nbr=”_f27″ nm=”GLC-DESCRIPTION” req=”1″ row=”5″ sz=”30″ tp=”Text”/>
<tabregion col=”1″ det=”0″ folders=”1″ grp=”tab1″ height=”11″ id=”tabregion1″ nbr=”TR0″ row=”6″ scroll=”0″ width=”79″>
<tab id=”tab1″ nbr=”TF0-0″ nm=” Main” par=”TR0″ secnm=”PRIMARY-TAB” tabprot=”0″>
<fld al=”right” col=”17″ id=”label5″ nbr=”_l17″ nm=”User Analysis:” par=”TF0-0″ row=”0″ sz=”14″ tp=”label”/>
<fld al=”right” col=”19″ id=”label6″ nbr=”_l18″ nm=”Source Code:” par=”TF0-0″ row=”1″ sz=”12″ tp=”label”/>
<fld al=”right” col=”11″ id=”label7″ nbr=”_l19″ nm=”Description Default:” par=”TF0-0″ row=”2″ sz=”20″ tp=”label”/>
<fld al=”right” col=”21″ id=”label8″ nbr=”_l20″ nm=”Reference:” par=”TF0-0″ row=”3″ sz=”10″ tp=”label”/>
<fld al=”right” col=”21″ id=”label9″ nbr=”_l21″ nm=”Hold Code:” par=”TF0-0″ row=”4″ sz=”10″ tp=”label”/>
<fld al=”right” col=”5″ id=”label10″ nbr=”_l22″ nm=”Automatic Reverse, Period:” par=”TF0-0″ row=”5″ sz=”26″ tp=”label”/>
<fld al=”right” col=”21″ id=”label11″ nbr=”_l23″ nm=”Base Zone:” par=”TF0-0″ row=”6″ sz=”10″ tp=”label”/>
<fld al=”right” col=”15″ id=”label12″ nbr=”_l24″ nm=”Document Number:” par=”TF0-0″ row=”7″ sz=”16″ tp=”label”/>
<fld al=”right” col=”18″ id=”label13″ nbr=”_l25″ nm=”Journal Book:” par=”TF0-0″ row=”8″ sz=”13″ tp=”label”/>
<fld al=”right” col=”2″ id=”label14″ nbr=”_l26″ nm=”Journal Book Sequence Number:” par=”TF0-0″ row=”9″ sz=”29″ tp=”label”/>
<fld al=”left” blankzero=”1″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”tabfld1″ nbr=”_f28″ nm=”PRIMARY-TAB” par=”TF0-0″ sz=”17″ tp=”Tab”/>
<fld al=”left” blankzero=”1″ col=”32″ drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ id=”text7″ keynbr=”SB2″ label=”User Analysis:” mxsz=”103″ nbr=”_f29″ nm=”GLC-SEGMENT-BLOCK” par=”TF0-0″ row=”0″ sz=”41″ tp=”Text”/>
<fld ALT_REF=”_f55″ al=”left” ar=”1″ blankzero=”1″ col=”32″ deftkn=”GL05.1″ defval=”JE” drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hrul=”1″ hsel=”1″ hselrul=”1″ id=”text8″ keynbr=”GCS” label=”Source Code:” nbr=”_f30″ nm=”GLC-SOURCE-CODE” par=”TF0-0″ row=”1″ sz=”2″ tp=”Text”/>
<fld ALT_REF=”_f56″ al=”left” ar=”1″ blankzero=”1″ col=”44″ drlnokeys=”0″ hdet=”1″ id=”out3″ keynbr=”GCT” nbr=”_f31″ nm=”GLC-SOURCE-CODE-DESC” par=”TF0-0″ row=”1″ sz=”30″ tp=”Out”/>
<fld al=”left” blankzero=”1″ col=”32″ defval=”J” drlnokeys=”0″ ed=”upper” hdet=”1″ hsel=”1″ id=”select3″ label=”Description Default:” nbr=”_f32″ nm=”GLC-TRAN-DESC-DFLT” par=”TF0-0″ row=”2″ seltype=”” sz=”1″ tp=”Select”>
<vals Disp=”J” Tran=”J” id=”vals4″ nbr=”_l27″>Journal Header</vals>
<vals Disp=”P” Tran=”P” id=”vals5″ nbr=”_l28″>Prior Transaction Line</vals>
</fld>
<fld al=”left” blankzero=”1″ col=”44″ defval=”_f32″ drlnokeys=”0″ hdet=”1″ id=”out4″ isxlt=”_f32″ nbr=”_f33″ nm=”GLC-TRAN-DESC-DFLT” par=”TF0-0″ row=”2″ sz=”30″ tp=”Out”/>
<fld al=”left” blankzero=”1″ col=”32″ drlnokeys=”0″ hdet=”1″ id=”text9″ keynbr=”GkX” label=”Reference:” nbr=”_f34″ nm=”GLC-REFERENCE” par=”TF0-0″ row=”3″ sz=”10″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”32″ deftkn=”GL12.1″ drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hsel=”1″ hselrul=”1″ id=”text10″ keynbr=”HLC” label=”Hold Code:” nbr=”_f35″ nm=”GLC-HOLD-CODE” par=”TF0-0″ row=”4″ sz=”4″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”44″ drlnokeys=”0″ hdet=”1″ id=”out5″ nbr=”_f36″ nm=”GLC-HOLD-CODE-DESC” par=”TF0-0″ row=”4″ sz=”30″ tp=”Out”/>
<fld al=”left” blankzero=”1″ col=”32″ defval=”N” drlnokeys=”0″ ed=”upper” hdet=”1″ hsel=”1″ id=”select4″ keynbr=”GkM” label=”Automatic Reverse, Period:” nbr=”_f37″ nknimp=”1″ nm=”GLC-AUTO-REV” par=”TF0-0″ row=”5″ seltype=”” sz=”1″ tp=”Select”>
<vals Disp=”N” Tran=”N” id=”vals6″ nbr=”_l29″>No</vals>
<vals Disp=”Y” Tran=”Y” id=”vals7″ nbr=”_l30″>Yes</vals>
</fld>
<fld al=”left” blankzero=”1″ col=”35″ drlnokeys=”0″ ed=”numeric” hdet=”1″ hsel=”1″ id=”select5″ keynbr=”G1b” nbr=”_f38″ nknimp=”1″ nm=”GLC-AUTO-REV-PD” par=”TF0-0″ row=”5″ seltype=”” sz=”2″ tp=”Select”>
<vals Disp=”00″ Tran=”00″ id=”vals8″ nbr=”_l31″>Next Period</vals>
<vals Disp=”01″ Tran=”01″ id=”vals9″ nbr=”_l32″>Period 1</vals>
<vals Disp=”02″ Tran=”02″ id=”vals10″ nbr=”_l33″>Period 2</vals>
<vals Disp=”03″ Tran=”03″ id=”vals11″ nbr=”_l34″>Period 3</vals>
<vals Disp=”04″ Tran=”04″ id=”vals12″ nbr=”_l35″>Period 4</vals>
<vals Disp=”05″ Tran=”05″ id=”vals13″ nbr=”_l36″>Period 5</vals>
<vals Disp=”06″ Tran=”06″ id=”vals14″ nbr=”_l37″>Period 6</vals>
<vals Disp=”07″ Tran=”07″ id=”vals15″ nbr=”_l38″>Period 7</vals>
<vals Disp=”08″ Tran=”08″ id=”vals16″ nbr=”_l39″>Period 8</vals>
<vals Disp=”09″ Tran=”09″ id=”vals17″ nbr=”_l40″>Period 9</vals>
<vals Disp=”10″ Tran=”10″ id=”vals18″ nbr=”_l41″>Period 10</vals>
<vals Disp=”11″ Tran=”11″ id=”vals19″ nbr=”_l42″>Period 11</vals>
<vals Disp=”12″ Tran=”12″ id=”vals20″ nbr=”_l43″>Period 12</vals>
<vals Disp=”13″ Tran=”13″ id=”vals21″ nbr=”_l44″>Period 13</vals>
</fld>
<fld al=”left” blankzero=”1″ col=”44″ defval=”_f37″ drlnokeys=”0″ hdet=”1″ id=”out6″ isxlt=”_f37″ mxsz=”4″ nbr=”_f39″ nm=”GLC-AUTO-REV” par=”TF0-0″ row=”5″ sz=”3″ tp=”Out”/>
<fld al=”left” blankzero=”1″ col=”49″ defval=”_f38″ drlnokeys=”0″ hdet=”1″ id=”out7″ isxlt=”_f38″ nbr=”_f40″ nm=”GLC-AUTO-REV-PD” par=”TF0-0″ row=”5″ sz=”20″ tp=”Out”/>
<fld al=”right” blankzero=”1″ col=”32″ deftkn=”GL30.1″ drlnokeys=”0″ ed=”numeric” hdef=”1″ hdet=”1″ hsel=”1″ hselrul=”1″ id=”text11″ keynbr=”LZ” label=”Base Zone:” nbr=”_f41″ nm=”GLC-BASE-ZONE” par=”TF0-0″ row=”6″ sz=”15″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”32″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”text12″ label=”Document Number:” nbr=”_f42″ nm=”GLC-DOCUMENT-NBR” par=”TF0-0″ row=”7″ sz=”27″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”32″ deftkn=”JB00.1″ drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hrul=”1″ hsel=”1″ hselrul=”1″ id=”text13″ keynbr=”JBN” label=”Journal Book:” nbr=”_f43″ nm=”GLC-JRNL-BOOK-NBR” par=”TF0-0″ row=”8″ sz=”12″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”46″ drlnokeys=”0″ hdet=”1″ id=”out8″ keynbr=”JBD” nbr=”_f44″ nm=”JBK-DESCRIPTION” par=”TF0-0″ row=”8″ sz=”30″ tp=”Out”/>
<fld al=”right” blankzero=”1″ col=”32″ drlnokeys=”0″ ed=”numeric” hdet=”1″ id=”out9″ keynbr=”JBS” label=”Journal Book Sequence Number:” nbr=”_f45″ nm=”GLC-JBK-SEQ-NBR” par=”TF0-0″ row=”9″ sz=”10″ tp=”Out”/>
<push al=”center” blankzero=”0″ btnnm=” Copy” col=”28″ hdef=”1″ id=”push1″ keynbr=”GL40.6″ nbr=”_f46″ nm=”MIMIC-WIN” par=”TF0-0″ row=”10″ sz=”6″/>
</tab>
<tab id=”tab2″ nbr=”TF0-1″ nm=” Dates, Currency” par=”TR0″ secnm=”PERIODS-TAB” tabprot=”0″>
<fld col=”3″ height=”5″ id=”rect1″ nbr=”_l45″ nm=” Dates ” par=”TF0-1″ row=”0″ tp=”rect” width=”68″/>
<fld col=”3″ height=”4″ id=”rect2″ nbr=”_l46″ nm=” Currency ” par=”TF0-1″ row=”5″ tp=”rect” width=”68″/>
<fld al=”right” col=”14″ id=”label15″ nbr=”_l47″ nm=”Posting:” par=”TF0-1″ row=”1″ sz=”8″ tp=”label”/>
<fld al=”right” col=”10″ id=”label16″ nbr=”_l48″ nm=”Transaction:” par=”TF0-1″ row=”2″ sz=”12″ tp=”label”/>
<fld al=”right” col=”8″ id=”label17″ nbr=”_l49″ nm=”ADB Effective:” par=”TF0-1″ row=”3″ sz=”14″ tp=”label”/>
<fld al=”right” col=”8″ id=”label18″ nbr=”_l50″ nm=”Currency Code:” par=”TF0-1″ row=”6″ sz=”14″ tp=”label”/>
<fld al=”right” col=”8″ id=”label19″ nbr=”_l51″ nm=”Exchange Rate:” par=”TF0-1″ row=”7″ sz=”14″ tp=”label”/>
<fld al=”left” blankzero=”1″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”tabfld2″ nbr=”_f47″ nm=”PERIODS-TAB” par=”TF0-1″ sz=”17″ tp=”Tab”/>
<fld al=”left” blankzero=”1″ col=”23″ drlnokeys=”0″ ed=”date” hdet=”1″ id=”text14″ keynbr=”Y59″ label=”Posting:” nbr=”_f48″ nm=”GLC-POSTING-DATE” par=”TF0-1″ row=”1″ sz=”6″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”23″ defval=”CTD” drlnokeys=”0″ ed=”date” hdet=”1″ id=”text15″ label=”Transaction:” nbr=”_f49″ nm=”GLC-DATE” par=”TF0-1″ row=”2″ sz=”6″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”23″ drlnokeys=”0″ ed=”date” hdet=”1″ id=”text16″ keynbr=”TTE” label=”ADB Effective:” nbr=”_f50″ nm=”GLC-EFFECT-DATE” par=”TF0-1″ row=”3″ sz=”6″ tp=”Text”/>
<fld al=”left” blankzero=”1″ btnnm=”98″ col=”23″ deftkn=”CU01.1″ drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hrul=”1″ hsel=”1″ hselrul=”1″ id=”text17″ keynbr=”JC” label=”Currency Code:” nbr=”_f51″ nknimp=”1″ nm=”GLC-CURRENCY-CODE” par=”TF0-1″ row=”6″ sz=”5″ tp=”Text”/>
<fld al=”left” blankzero=”1″ col=”37″ drlnokeys=”0″ hdet=”1″ id=”out10″ keynbr=”98D” nbr=”_f52″ nm=”CUC-DESCRIPTION” par=”TF0-1″ row=”6″ sz=”30″ tp=”Out”/>
<fld al=”right” blankzero=”1″ col=”23″ decsz=”7″ deftkn=”CU10.1″ drlnokeys=”0″ ed=”numeric” hdef=”1″ hdet=”1″ hsel=”1″ hselrul=”1″ id=”text18″ keynbr=”98R” label=”Exchange Rate:” nbr=”_f53″ nknimp=”1″ nm=”GLC-BASERATE” par=”TF0-1″ row=”7″ sz=”15″ tp=”Text”/>
</tab>
<tab id=”tab3″ nbr=”TF0-2″ nm=” Attributes” par=”TR0″ secnm=”ATTRIB-TAB” tabprot=”0″>
<fld al=”right” col=”9″ id=”label20″ nbr=”_l52″ nm=”Source Code:” par=”TF0-2″ row=”1″ sz=”12″ tp=”label”/>
<fld al=”left” blankzero=”1″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”tabfld3″ mxsz=”17″ nbr=”_f54″ nm=”ATTRIB-TAB” par=”TF0-2″ sz=”14″ tp=”Tab”/>
<fld ALT_REF=”_f30″ al=”left” ar=”1″ blankzero=”1″ col=”22″ deftkn=”GL05.1″ defval=”JE” drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hrul=”1″ hsel=”1″ hselrul=”1″ id=”text19″ keynbr=”GCS” label=”Source Code:” nbr=”_f55″ nm=”GLC-SOURCE-CODE” par=”TF0-2″ row=”1″ sz=”2″ tp=”Text”/>
<fld ALT_REF=”_f31″ al=”left” ar=”1″ blankzero=”1″ col=”29″ drlnokeys=”0″ hdet=”1″ id=”out11″ keynbr=”GCT” nbr=”_f56″ nm=”GLC-SOURCE-CODE-DESC” par=”TF0-2″ row=”1″ sz=”30″ tp=”Out”/>
<fld al=”left” blankzero=”0″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”hidden18″ keynbr=”GXA” nbr=”_f57″ nm=”GLT-MATRIX-CAT-1″ sz=”12″ tp=”Hidden”/>
<fld al=”left” blankzero=”1″ col=”9″ drlnokeys=”0″ hdet=”1″ id=”out12″ keynbr=”GX1″ nbr=”_f58″ nm=”GLT-DESCRIPTION-1″ par=”TF0-2″ row=”3″ sz=”30″ tp=”Out”/>
<fld al=”left” blankzero=”1″ col=”41″ deftkn=”MX00.1″ drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hsel=”1″ hselrul=”1″ id=”text20″ keynbr=”CV1″ mxsz=”32″ nbr=”_f59″ nm=”GLT-MX-VALUE-1″ par=”TF0-2″ row=”3″ sz=”20″ tp=”Text”/>
<fld al=”left” blankzero=”0″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”hidden19″ keynbr=”GXB” nbr=”_f60″ nm=”GLT-MATRIX-CAT-2″ sz=”12″ tp=”Hidden”/>
<fld al=”left” blankzero=”1″ col=”9″ drlnokeys=”0″ hdet=”1″ id=”out13″ keynbr=”GX2″ nbr=”_f61″ nm=”GLT-DESCRIPTION-2″ par=”TF0-2″ row=”4″ sz=”30″ tp=”Out”/>
<fld al=”left” blankzero=”1″ col=”41″ deftkn=”MX00.1″ drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hsel=”1″ hselrul=”1″ id=”text21″ keynbr=”CV2″ mxsz=”32″ nbr=”_f62″ nm=”GLT-MX-VALUE-2″ par=”TF0-2″ row=”4″ sz=”20″ tp=”Text”/>
<fld al=”left” blankzero=”0″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”hidden20″ keynbr=”GXC” nbr=”_f63″ nm=”GLT-MATRIX-CAT-3″ sz=”12″ tp=”Hidden”/>
<fld al=”left” blankzero=”1″ col=”9″ drlnokeys=”0″ hdet=”1″ id=”out14″ keynbr=”GX3″ nbr=”_f64″ nm=”GLT-DESCRIPTION-3″ par=”TF0-2″ row=”5″ sz=”30″ tp=”Out”/>
<fld al=”left” blankzero=”1″ col=”41″ deftkn=”MX00.1″ drlnokeys=”0″ ed=”upper” hdef=”1″ hdet=”1″ hsel=”1″ hselrul=”1″ id=”text22″ keynbr=”CV3″ mxsz=”32″ nbr=”_f65″ nm=”GLT-MX-VALUE-3″ par=”TF0-2″ row=”5″ sz=”20″ tp=”Text”/>
</tab>
</tabregion>
<fld al=”left” blankzero=”0″ drlnokeys=”0″ ed=”upper” hdet=”1″ id=”sp1″ nbr=”_f66″ nm=”_HK” req=”1″ sz=”23″ tp=”Sp”/>
<PATH id=”path1″ nbr=”_l53″/>
<msgBar bMsgArea=”1″ id=”msgbar1″ nbr=”msgBar”/>
<XSCRIPT id=”script1″ nbr=”_s1″>
<![CDATA[
function FORM_OnBeforeTransaction(fc)
{
if ((fc == “D”) ||
(fc == “C”))
{

var vID = portalWnd.oUserProfile.getAttribute(“ID”);
var vNtID = portalWnd.oUserProfile.getAttribute(“lawsonuserlogin”);
var vMessage=”User Cannot Modify GL Entry”;
var vCompany=lawForm.getDataValue(“GLC-COMPANY”);
vCompany=portalWnd.strFillChar(vCompany,4,”left”,”0″);

var vFYear=lawForm.getDataValue(“GLC-FISCAL-YEAR”);
var vAPeriod=lawForm.getDataValue(“GLC-ACCT-PERIOD”);
var vSystem=lawForm.getDataValue(“GLC-SYSTEM”);
var vJeType=lawForm.getDataValue(“GLC-JE-TYPE”);
var vCountrolGrp=lawForm.getDataValue(“GLC-CONTROL-GROUP”);
var vJeSeq=lawForm.getDataValue(“GLC-JE-SEQUENCE”);

// build the DME call that will get the related asset number
var vDmeString = portalWnd.DMEPath;
vDmeString += “?PROD=DEVRY&FILE=GLCONTROL&FIELD=OPERATOR;&MAX=1&INDEX=GLCSET1”;
vDmeString += “&KEY=” + vCompany + “=” + vFYear + “=” + vAPeriod + “=” + vSystem + “=” + vJeType + “=” + vCountrolGrp + “=” + vJeSeq;
vDmeString += “&SELECT=OPERATOR=” + vNtID;
vDmeString += “&XCOLS=TRUE”;
vDmeString += “&OUT=XML”;

// send the DME call to the server
var vDMEInfo = portalWnd.httpRequest(vDmeString);

if (!vDMEInfo || vDMEInfo.status)
{
var msg=”Error calling DME, “;
msg += (vDMEInfo
? “(status code): “+vDMEInfo.status
: “bad server response.”);
lawForm.setMessage(msg);
alert(msg);
return false;
}

// create an XML object to contain the DME data
var vObjDMEXML = new portalWnd.DataStorage(vDMEInfo);

var vOpr=lawForm.getDataValue(“OPERATOR”);

// load a variable with the records returned by DME
var vRecords = vObjDMEXML.document.getElementsByTagName(“RECORD”);
if (vRecords.length != 1)
{
var vMsg = “Cannot Modify GL Entry”;
lawForm.setMessage(vMsg);
return false;
}

}
return true;
}

]]>
</XSCRIPT>
</form>



This shows the program is a Design Studio form formid=”GL40.2_CUSTOM”. The reason it didn’t show properly aligned to the Lawson Portal is because some of the size of the boxes did not match the Portal and DS form.

Resolution:

Run the analyzer tool from Lawson Portal.

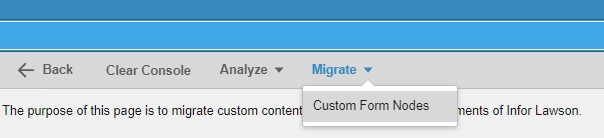

Go to Portal > Migrate Custom Content > Migrate Custom Content > Migrate>Custom Form Nodes

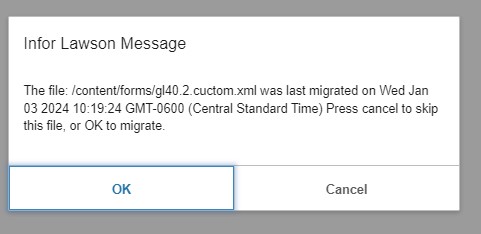

You will get Pop ups for the custom form to migrate.

Click ok

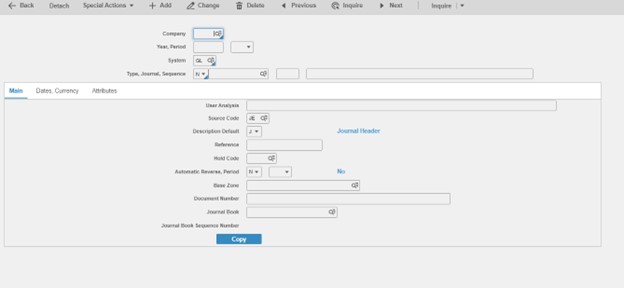

And then go to Portal and try your screen again. It should not have the right size.
